System Flows

These views describe the same platform at different levels: chronological calls, component collaboration, end-to-end activity, and state transitions.

Sequence diagram​

ForesightX sequence diagram

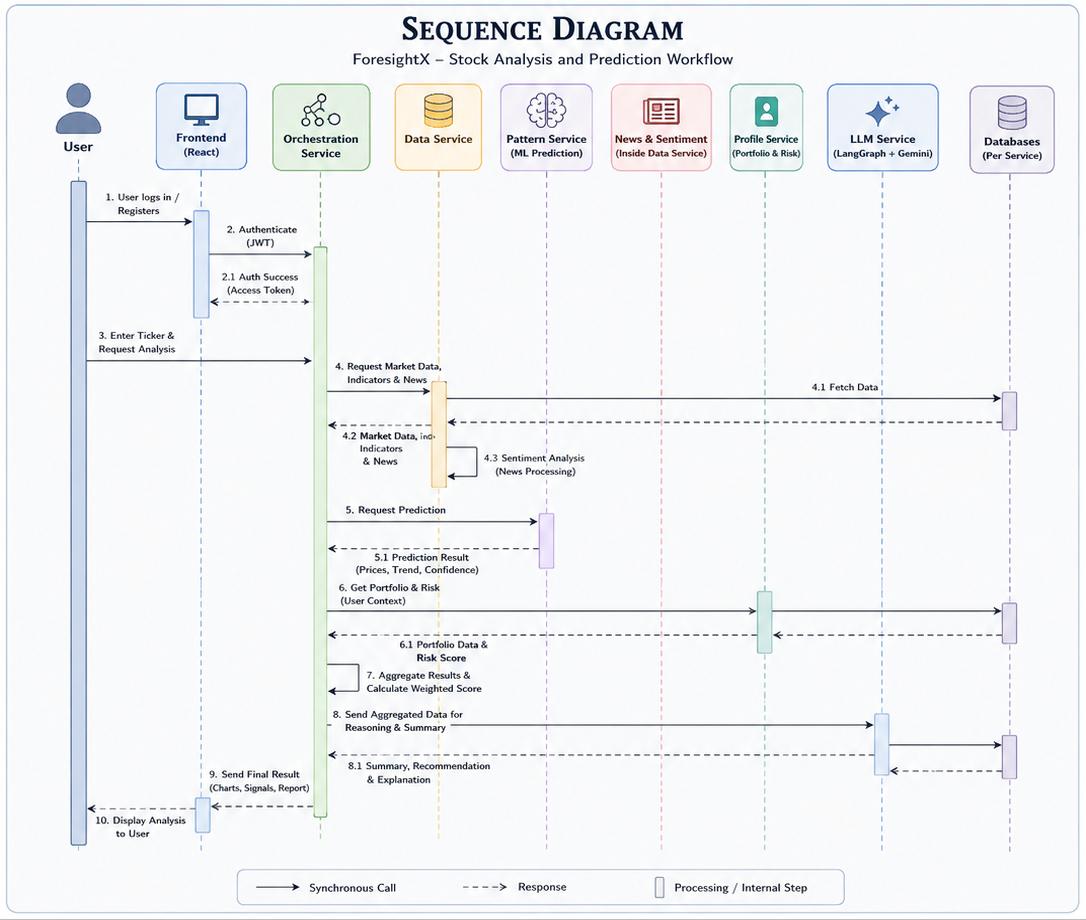

The sequence begins with authentication and instrument selection, then fans out through orchestration to data, prediction, and profile dependencies before returning one consolidated result.

Collaboration diagram​

ForesightX collaboration diagram

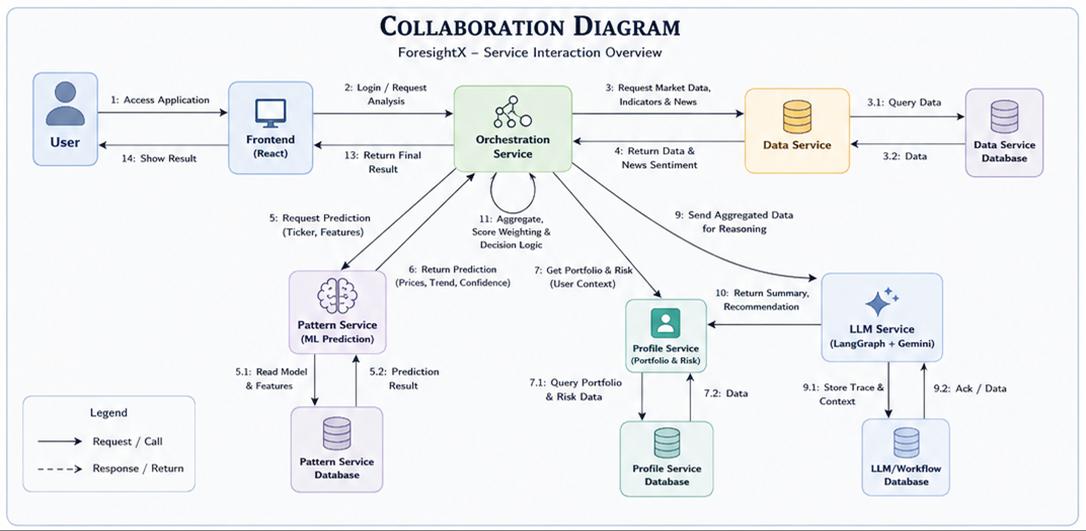

The collaboration view emphasizes ownership and message direction. Services communicate through APIs; they do not read one another's databases.

Activity diagram​

ForesightX activity diagram

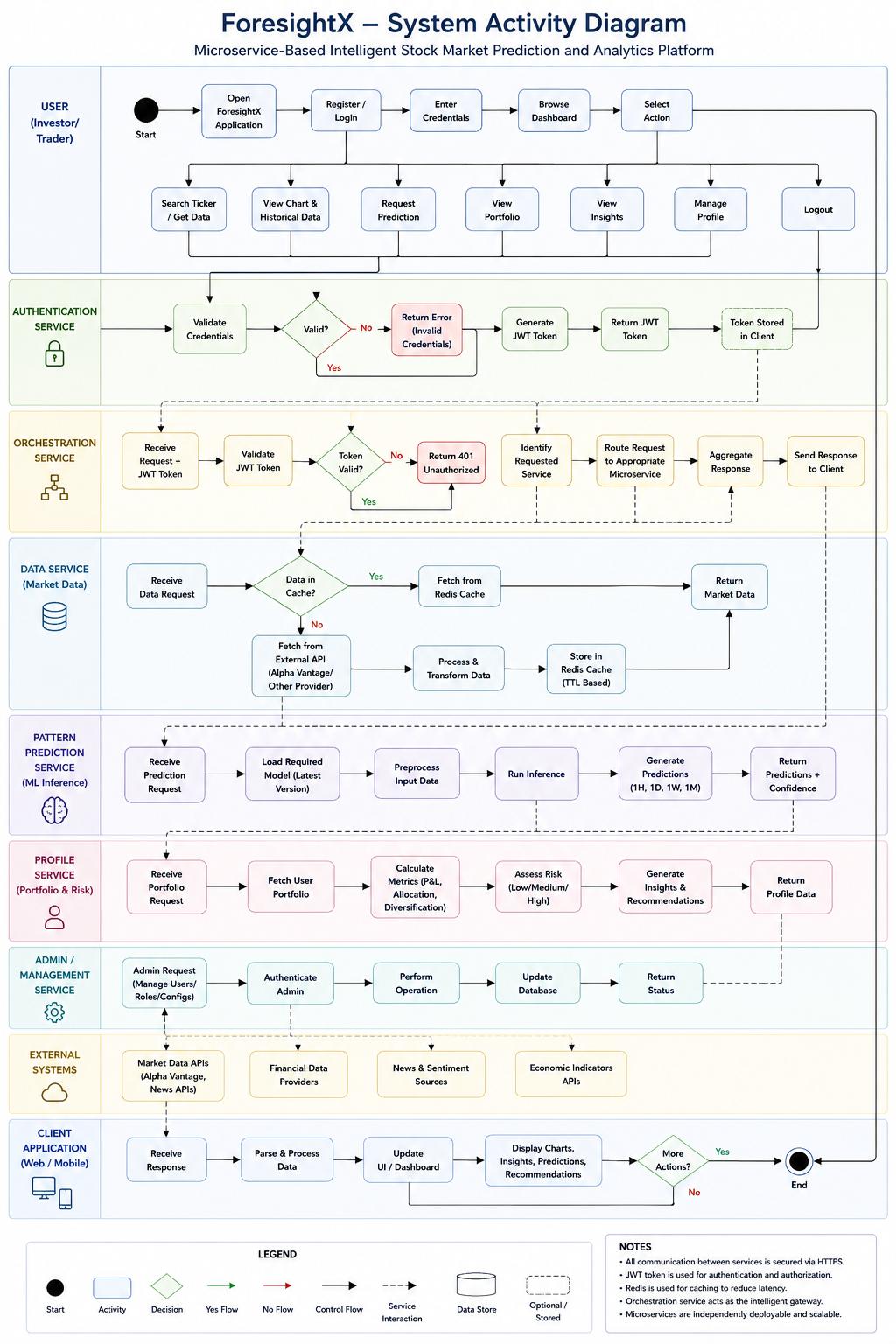

The activity flow includes user decisions, platform validation, parallel evidence collection, response composition, and error paths. Independent branches allow market data and prediction work to progress without serializing every remote call.

State transitions​

ForesightX state transition diagram

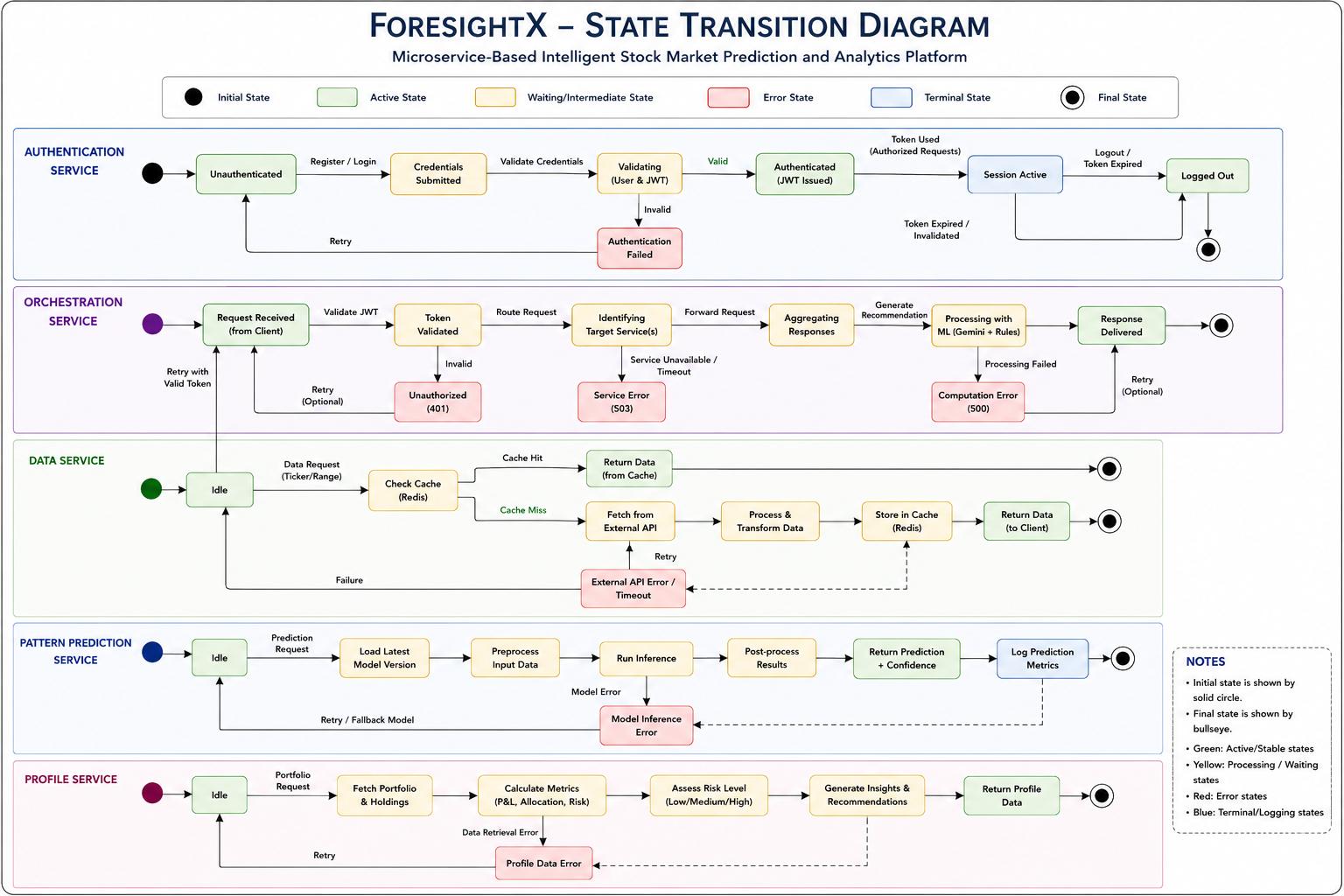

The state model covers authentication, navigation, analysis, portfolio operations, and service outcomes. Explicit loading, success, empty, and error states keep both frontend behavior and backend workflow handling predictable.
